Switches, Sensors & Energy Harvesting Solutions

Browse our extensive ranges of high-performance Switches & Sensors or Energy Harvesting products

SensorsSwitchesEnergy Harvesting

Our Product Ranges

Filter

LIN Sensors – Kit with magnet

The LIN Series sensors are non-contact linear position sensors with one or two independent outputs.…
  • Easy setup and robust monitoring with M4 screws
  • Dual independent (redundant) outputs assure high reliability
  • No mechanical interface means no parts to wear out or jam
  • Comes with 20 AWG 305 mm (12”) discrete wire leads or harness with connector
  • RoHS compliant
  • IP68*
  • Compliant to industrial/automotive EMC/EMI/ESD directives
Read More

709-21995 Magnet Carrier

Description Angle Position Sensors - 709-21995 Magnet Carrier
  • Magnet carrier for ZF AN8, AN9 and ANG sensors
  • PA 6 GF30 housing
  • Samarium Cobalt 28 Magnet
Read More

ANG Sensors

The ANG Series sensors are non-contact, intrinsically linear position sensors with one or two independent…
  • Angular position sensor with high tolerance for misalignment
  • Non-contact angular position sensing and full 360O rotation
  • Custom programming available for: angle range, slope, PWM output – contact factory
  • No mechanical interface means no parts to wear out or jam
  • Comes with 20 AWG 305 mm (12”) discrete wire leads
  • RoHS Compliant
  • IP68*
  • Maximum air gap of 6 mm (0.24”)
  • Compliant to industrial/automotive EMC/EMI/ESD directives
Read More

E-Bike Sensor

Hall based non-contact and solid-state sensor for speed detection. High resolution in combination with speed…
  • Supply voltage: 6.5 – 20 VDC
  • Signal Output low: 7+1.4/-1.1 mA
  • Signal Output high: 14+2.8/-2.2 mA
  • Operating frequency: 1 – 2.5 kHz
  • Operating temperature: -25°C – 85°C
Read More

Speed & Direction Sensor Kit

Hall Effect speed & direction sensors designed to detect ferromagnetic structures.  A modular-based design allows…
  • Capable of measuring from near zero up to 20 KHz.
  • Variable shaft length (20 to 80 mm)
  • Variable shaft diameter (12 to 20 mm)
  • 2-wire, 3-wire, 4-wire output
  • Cable interface (connector upon request)
  • Rotatable shaft head (to determine angle of wire outlet)
  • Flexible wire orientation (horizontal or right-angle)
  • Wire harness option with customer-specific connector (available on request)
  • Available with open-collector, PWM or Current signal outputs
Read More

GS101205 Sensors

Hall Effect devices designed for use in applications where ferrous edge detection/near zero speed sensing…
  • From near zero speed up to 15 kHz sensing capability
  • Plastic flange-mount housing
  • Resistant to fuels, solvents, and lubricants associated with engines, transmissions, brakes and chassis systems
  • ROHS compliant
  • IP67
  • Typical air gap of 1.5 mm*
Read More

MP1007 Sensors

One-piece non-contact solid-state position sensors that operate through the use of Hall Effect technology with…
  • Solid state reliability
  • Stable output over operating temperature range
  • Compatible with unregulated power supply
  • South pole activated
  • Open collector (sinking or NPN) output can be used with bipolar or CMOS logic circuits with suitable pull-up resistor
  • RoHS compliant
  • IP67
Read More

MP2019 Sensors

Reed position sensors with normally open or closed contacts that change states when a magnetic…
  • Contacts hermetically sealed for long life
  • Zero power consumption
  • Suitable for DC and AC circuits
  • RoHS compliant
  • Mounting hardware included
  • IP65
  • Operate/Release Distances*: 10.16 mm – 22.86 mm (0.4” – 0.97”)
Read More

MP2018 Sensors

Reed position sensors with normally open or closed contacts that change states when a magnetic…
  • Contacts hermetically sealed for long life
  • Zero power consumption
  • Suitable for DC and AC circuits
  • RoHS compliant
  • Mounting hardware included
  • IP65
  • Operate/Release Distances*: 6.35 mm – 17.8 mm (0.25” – 0.7”)
Read More

MP2017 Sensors

Reed position sensors with normally open or closed contacts that change states when a magnetic…
  • Contacts hermetically sealed for long life
  • Zero power consumption
  • Suitable for DC and AC circuits
  • RoHS compliant
  • IP65
  • Operate/Release Distances*: 3.81 mm – 12.7 mm (0.15” – 0.5”)
Read More

MP1021 Sensors

One-piece non-contact solid-state position sensors that operate through the use of Hall Effect technology with…
  • Solid state reliability
  • Flange-mount housing
  • Stable output over operating temperature range
  • Compatible with unregulated power supply
  • Open collector (sinking or NPN) output can be used with bipolar or CMOS logic circuits with suitable pull-up resistor
  • North pole sensitive
  • Unipolar device
  • RoHS compliant
  • IP67
Read More

MP2007 Sensors

Reed position sensors with normally open or closed contacts that change states when a magnetic…
  • Contacts hermetically sealed for long life
  • Zero power consumption
  • Suitable for DC and AC circuits
  • RoHS compliant
  • Mounting hardware included
  • IP65
  • Operate/Release Distances*: 3.81 mm – 12.7 mm (0.15” – 0.5”)
Read More

Filter

E19/20 Series

Double-pole industrial snap-switch that offers 3 current ratings (0.1A, 15A and 25A) with a long-life…
  • Robust standard switch for industrial applications
  • 5 current ratings, up to 30 A
  • Wide variety of auxiliary actuators available
  • 3 terminal types (optional screw terminals available)
  • 3 contact configurations
  • High-temperature 150 °C
  • Long-life coil spring mechanism
Read More

Ultraminiature DH – Upgraded

This is the upgraded version of the Ultraminiature DH. Some distributors may still hold stock…
  • Extremely small dimensions - 8.4 mm × 2.7 mm × 6.55 mm only
  • Increased temperature range of -25°C to 85°C
  • Degree of protection IP40
  • Solder connection straight, RH and LH side possible
Read More

Sub-subminiature DG – Upgraded

This is the upgraded version of the Sub-subminiature DG. Some distributors may still hold stock…
  • Extremely small dimensions – only 12.8 x 5.8 x 6.6 mm
  • Approvals up to 3 A 125 VAC (ENEC, UL), DC rating up to 3 A, 30 VDC (UL)
  • Available with or without auxiliary actuator
  • Operating temperature -25 to +125 °C
  • Mechanical life up to 1 x 106 operations (model dependant)
  • Degree of protection IP40
Read More

General Purpose GP

General purpose snap action switch with ultra-small travel differential; current rating up to 20A with…
  • Rated up to 20A
  • Screw or solder terminals
  • IP40
  • Long mechanical operating life
Read More

E13/14 Series

Single-pole industrial snap-switch that offers 3 current ratings (0.1A, 15A and 25A) with a long-life…
  • Robust standard switch for industrial applications
  • 5 current ratings, up to 30 A
  • Wide variety of auxiliary actuators available
  • 3 terminal types (optional screw terminals available)
  • 3 contact configurations
  • High-temperature 150 °C
  • Long-life coil spring mechanism
Read More

Sub-subminiature DR

Switch with mushroom or pan-head actuator for a wide variety of control applications.
  • Switching current 5 mA to 2 A DC
  • Switching voltage max. 12VDC (60 V on request)
  • High contact stability thanks to AuAg crosspoint contacts
  • Mechanical life up to 15 x 106 actuations
  • Auxiliary actuator on request
  • Degree of protection IP40
Read More

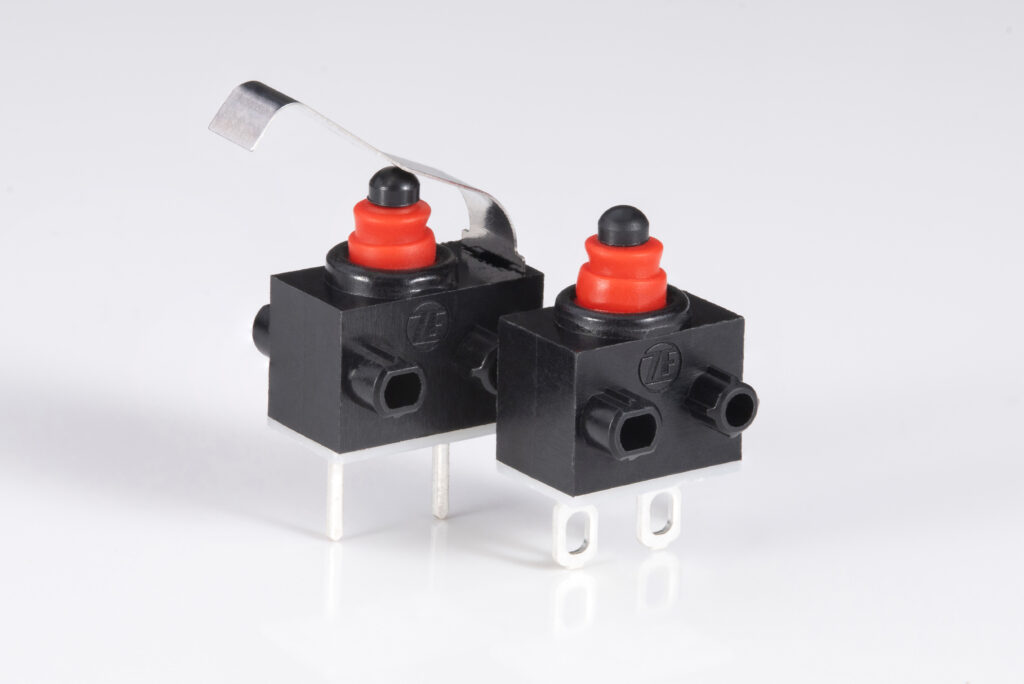

Center-off NM02

Miniature switch with neutral midpoint position and wide angle of lateral deflection (± 40°) to…
  • Protected to IP6K7 with silicon-free sealing gasket (terminals to IP00)
  • Switching point of 10 ± 5 °C
  • Large overtravel for high switching stability
  • Operating life > 100,000 switch actuations
  • Operating temperature -40 to +85 °
Read More

Pushbutton KF Series

Sealed, snap-in mounted pushbutton switch tested to 100,000 cycle mechanical life
  • IP65 Pushbutton switch
  • AC and DC electrical ratings
  • Single-pole and double-pole configurations
  • Lighted and non-lighted versions available
  • 20 Amps
Read More

Rocker KD Series

Sealed, snap-in mounted rocker switch tested to 100,000 cycle mechanical life
  • IP65
  • AC and DC electrical ratings
  • Single-pole and double-pole configurations
  • Lighted and non-lighted versions available
  • Maintained-action and momentary options
  • 16 Amps
Read More

Rocker KG Series

Sealed, snap-in mounted rocker switch tested to 100,000 cycle mechanical life
  • Enclosed switch complying to IP56
  • AC and DC electrical ratings
  • Single-pole and double-pole configurations
  • Maintained-action and momentary options
  • 20 Amps
Read More

Rocker KR Series

Sealed, snap-in mounted rocker switch tested to 100,000 cycle mechanical life
  • Industry standard miniature package
  • Enclosed switch complying to IP65
  • AC and DC electrical ratings
  • Lighted and non-lighted versions available
  • Maintained-action and momentary options
  • 16 Amps
Read More

Rocker RR Series

Snap-in mounted rocker switch tested to 100,000 cycle mechanical life
  • AC electrical ratings
  • Lighted and non-lighted versions available
  • Two position
  • Single and double-pole options
  • 10 Amps
Read More

Filter

ZigBee, BLE, Customer-Specific

The ZF switch module is a self-powered, wireless and battery-free pushbutton module for building automation…
Read More

EnOcean® Protocol Products

The ZF 2 way radio switch module is designed for use in wireless switches and…
  • 2-way wireless switch module
  • Fully compatible with existing EnOcean Certified 3.0 wireless systems
  • Using RF standard ISO / IEC 14543-3-10/10
  • Flexibility in application design and easy to install – no cables necessary
  • Long lifetime (100,000 switching cycles) and no batteries – maintenance-free
  • Suitable for all Energy Harvesting switch series
  • Completely compatible with existing EnOcean RF-Systems
  • ZF as member of the EnOcean Alliance enables customer specific RF solutions
Read More

KNX Products & Accessories

2-way Energy Harvesting wireless switch module for wireless communication with KNX systems (using ETS 5 KNX…
  • 2-way wireless switch
  • KNX-RF 2.0 Ready S-mode
  • Configurable with ETS 5
  • Frequency band 868.3
  • Temperature range: -20 to +45 °C (-40 to +113 °F)
  • Operating distance: up to 30 m (in buildings)
  • Operating force: > 10 N
  • Protocol transmission time: approx. 19 ms
Read More

Energy Harvesting Generators

The core element of ZF’s Energy Harvesting technology, the generator, is available in monostable (momentary)…
  • Available in monostable & bistable form
  • Dimensions: 20.1 x 7.1 x 14.3 mm
  • Energy Output: min. 0.33 mWs
  • Temperature range: -40 to +85 °C
Read More

ZF Certificates

ZF operates world wide according certified standards. On this page you will find the current certificates of the ZF sites, world wide.
