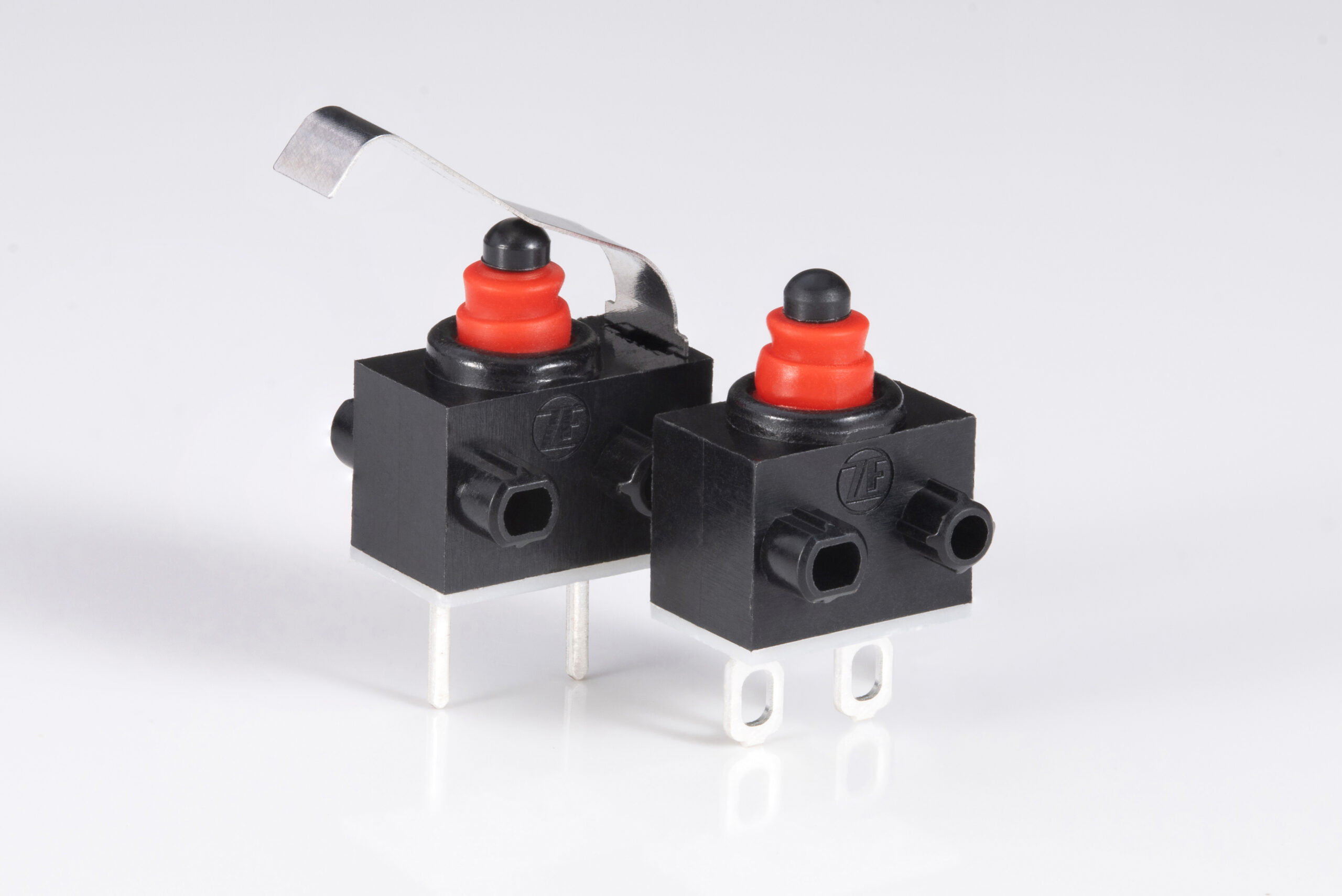

Sub-subminiature WG
Description
Sub-subminiature switch with high contact stability for low switching loadsFeatures
- Silent operation due to sliding contacts
- Smallest dimensions
- Temperature range -40 °C to +85 °C
- High operating life
- Different connection possibilities, also with leads available on request
- Engineered based on market-proven SK/SJ switch series (millions in field)
- IP67
Application
- Household Appliances
- Automotive
- Industrial Equipment
- Automotive
Preferred Parts
Swipe to Browse
| Part Number | Check Stock | Electrical Rating | Contact configuration | Terminal Type | Actuator Type | Operating Force max. | Data | CAD |
|---|---|---|---|---|---|---|---|---|
|
WG1E-B2B1 |
0.1 A 12 VDC |
SPST |
Solder |
Simulated roller |
300 cN |
|||
|
WG1E-A6A0 |
0.1 A 12 VDC |
SPST |
Solder |
Button |
150 cN |
It is the responsibility of the user to determine product suitability. Specifications are subject to change without notice.
*Actuator length based on distance from pivot point
Related Products
E13/14 Series
- Robust standard switch for industrial applications
- 5 current ratings, up to 30 A
- Cadmium contacts for high load requirements
- Wide variety of auxiliary actuators available
- 3 terminal types (optional screw terminals available)
- 3 contact configurations
- High-temperature 150 °C
- Long-life coil spring mechanism
General Purpose GP
- Rated up to 20A
- Screw or solder terminals
- Cadmium contacts for high load requirements
- Long mechanical operating life
- IP40
Miniature D4
- Precise snap action switch
- Long life coil spring mechanism
- Switching current 0.1 to 21 A at 250 VAC
- Temperature range: -40 °C to 85 °C/125°C/150 °C
- Protection class: IP40
- Standard and light force operating mechanism
Miniature D4 RAST 2.5
- Special variant of the D4 switch with Rast 2.5 connector
- (also for W4 available)
- Long life coil spring mechanism
- Switching current 0.1 to 6 A at 250 VAC
- Temperature range: -40 °C to max. +85 °C
Miniature W4
- Special variant of the D4 switch for specific requirements such as capacitor loads
- Wiping contact system
- Switching current 0.1 to 3 A at 250 VAC
- Temperature range: -40 to max. +85 °C
- Protection class: IP40
- Various aux actuators
Subminiature DB
- Precise snap action switch
- Long life coil spring mechanism
- Switching current 0.1 to 10 A at 250 VAC
- Versions up to 3 A 30 VDC possible
- Temperature range: -40 °C to 85 °C/120 °C
- Protection class: IP50
- Different mounting options (location posts, mounting holes)
Subminiature DC
- Precise snap action switch
- Long life coil spring mechanism
- Switching current 0.1 to 10 A at 250 VAC
- Versions up to 3 A 30 VDC possible
- Temperature range: -40 to 85 °C/120 °C
- Protection class: IP67 (switching system)
- Different mounting options (location posts, mounting holes)
Subminiature DCJK
- Special variant of the DC switch for special applications with sealed protection type IP67
- Long life coil spring mechanism
- Switching current 0.005 to 3 A DC at 12 V DC
- Temperature range wire versions: -40 to +105 °C
- Protection class: IP67 (switching system)
- Different mounting options (location posts, mounting holes)
Subminiature DZ
- Precise snap action switch
- Positive break action on NC contact
- Switching current up to 3 A at 250 VAC
- Temperature range: -20 to +85 °C
- Protection class: IP40
Sub-subminiature DG – Upgraded
- Extremely small dimensions – only 12.8 x 5.8 x 6.6 mm
- Approvals up to 3 A 125 VAC (ENEC, UL), DC rating up to 3 A, 30 VDC (UL)
- Available with or without auxiliary actuator
- Operating temperature -25 to +125 °C
- Mechanical life up to 1 x 106 operations (model dependant)
- Degree of protection IP40
Sub-subminiature DJ
- Easy installation thanks to connector pins or fastening slot
- Smallest dimensions
- Models available for up to 85 °C operating temperature
- Nominal currents 5 mA to 2 A at 12 V DC
- Mechanical operating life min. 500,000 operations
